Amorphous Ribbons/Cores

The magnetic core of this transformer is made with a ferromagnetic amorphous metal. An amorphous material formed by the art, having an extremely high quality, superior physical and electrical.

  • Overview
  • Images
  • Table
  • Graph

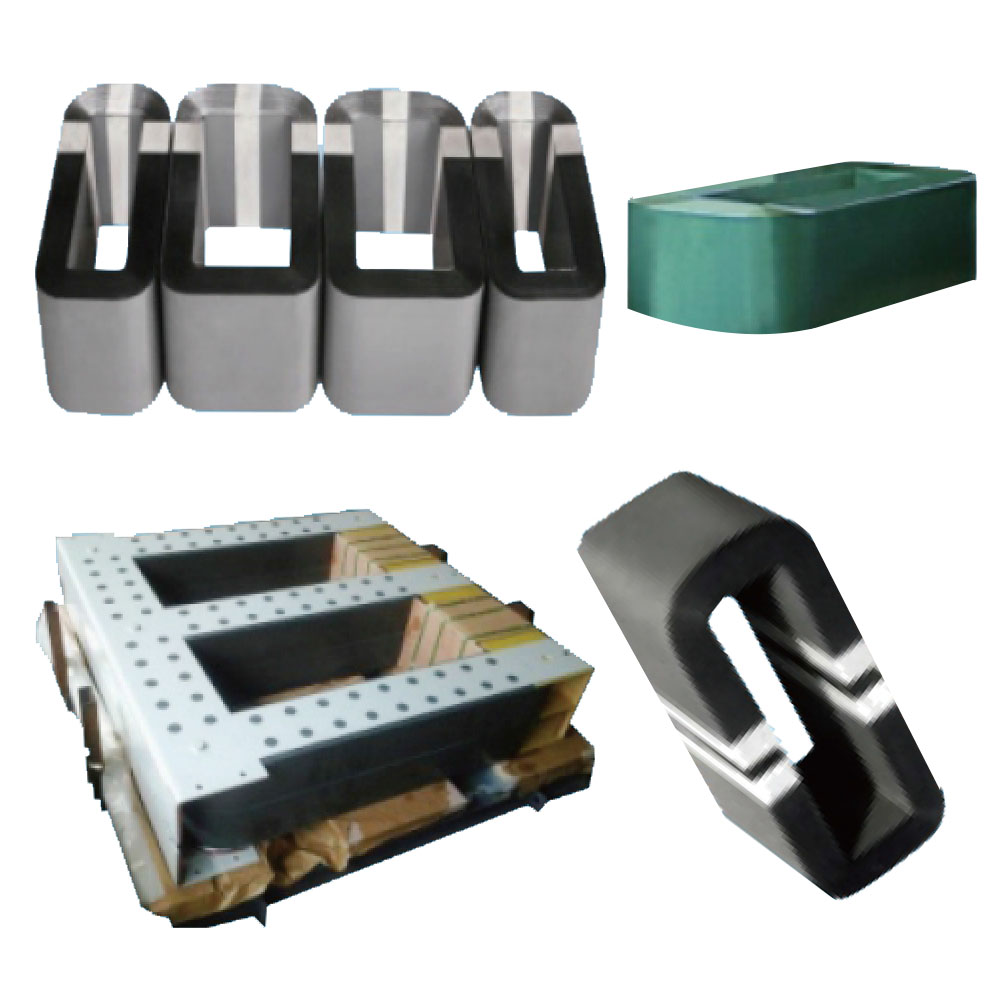

AMORPHOUS ALLOY IRON CORES

    Classification of amorphous alloy iron cores
  • Three-phase oil-immersed amorphous alloy distribution transformer core Single-phase oil-immersed amorphous alloy distribution transformer core
  • Three coherence is the core of amorphous alloy distribution transformer
    Product Characteristic
  • Small lightweight transformer to reduce direct material cost
  • The equipment is simple and fast, and the production capacity is greatly improved.
  • Low noise effect
  • Compared with the silicon steel sheet transformer of the same capacity voltage grade, the no-load loss is reduced by 70% and the no-load current is reduced by about 75%. The energy saving effect is obvious.

Iron-based amorphous alloy compared with other manufacturers


Performance index

Iron-based amorphous alloy(Guoneng)

Other domestic manufacturers

saturation flux density(T)

1.6

1.56

Coercive force(A/ m)

<3.8

<4

Maximun permeability(|j)

>20*104

>20*104

Iron loss 50Hz 1.35T(W/kg)

<0.14

<0.16

Exciting power 50Hz 1,35T(VA/ kg)

<0.16

<0.18

Lamination factor

>0.88

>0.86

Magnetostrictive coefficient

27x10-6

27x10-6

Resistivity(pQcm)

130

130

Density(g/ cm3)

7.2

7.18

Crystallization temperature(°C)

540

550

Curie temperature(°C)

405

415

Strength of extension(MPa)

1500-2000

1500-2000

Vickers hardness(HV)

900

900

Thickness(pm)

< 30(Our strip basically about 24 m)

<30

Curve graph for iron cores (142/170)


Curve graph for dry type cores (170mm/142mm)
